Borealis

Quantum computational advantage, with light

A programmable photonic quantum computer with 216 squeezed-state qubits that outperforms the best classical supercomputers at a specific task.

Why it matters

Beyond the reach of the fastest supercomputers

Using direct simulation, the fastest supercomputer in the world would take approximately 9,000 years to generate a single such sample, compared to 36 microseconds for Borealis. This runtime advantage is more than 50 million times larger than that of earlier photonic demonstrations.

216

Squeezed-state qubits

1,200+

Gate parameters, freely specified by the user

1+ km

Longest stabilized fiber buffer loop

6 μs

Of storage time in that loop

Inside Borealis

Under the hood: how Borealis works

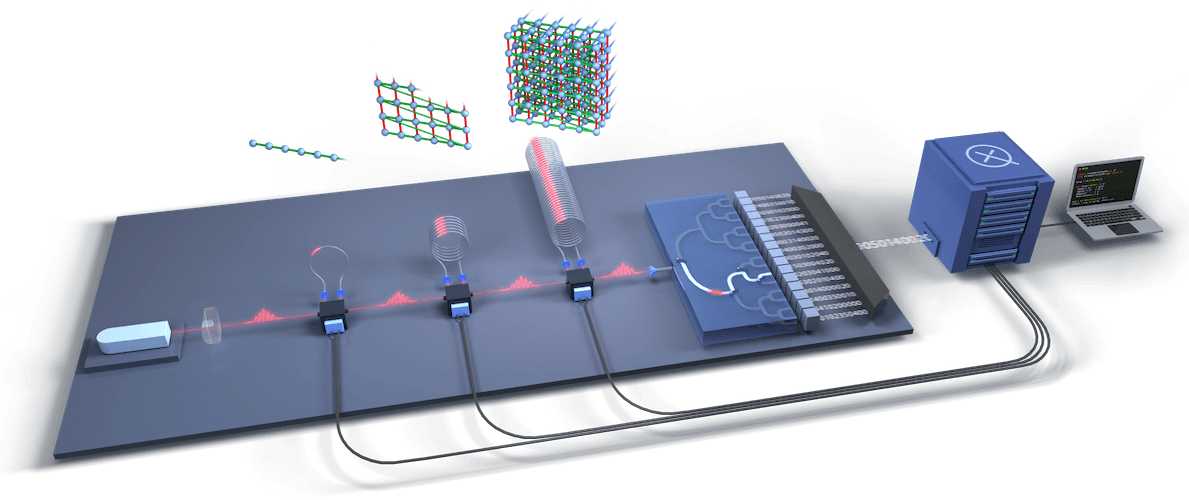

Breakdown of Borealis: a squeezed-light source, three loop-based interferometers, a demultiplexer and photon-number-resolving detectors, connected to a control computer
  1. Source

    Squeezed-state qubits are generated from a nonlinear crystal inside an optical resonator called an “optical parametric oscillator” (OPO).

  2. Loops

    They are sent to a series of three loop-based interferometers, ultimately resulting in a three-dimensional entangled state.

  3. Control

    This entanglement is controlled by variable beamsplitters (VBS) and fiber optic delay lines.

  4. Readout

    Readout is performed using a demultiplexer (demux), followed by an array of photon-number resolving detectors (PNRs).

Xanadu's quantum computing lab enclosure

Fully programmable

Borealis is the first photonic quantum computer with quantum computational advantage to offer users full programmability over all its gates: over 1,200 parameters can be freely specified by the user encoding their program, as well as the brightness of the input squeezed-state qubits.

Counting photons

In Borealis, we employ highly sensitive energy sensors to count photons. These are called photon-number-resolving detectors, or PNRs for short. The PNR detectors are the only part of Borealis requiring cryogenic cooling.

Optical components on a lab breadboard
Presenting a Xanadu quantum computer enclosure design

A step toward fault tolerance

The most significant example of such a technology embedded within Borealis and needed for fault-tolerance is the use of stabilized fiber optic delay lines to store photonic squeezed-state qubits in buffer memory. The longest such buffer loop in Borealis is over 1 km, representing 6 microseconds of storage time.
